A fiber optic tool kit contains go to equipment. A must for any professional technician. With the correct product selection in portable cases, the technician can do the job correctly, easily and keep the network running efficiently. Having the right test equipment in your kit saves time and money. It also ensures that the fiber network installation has minimal reflectance for faster speeds. We offer standard ready to go kits or we can custom build a tool kit to your specifications. Whether you are conducting a fiber optic test, installing fiber optic connectors or performing a fiber optic fusion splice, these tool kits will make it easier for the technician to do their job the right way. Rugged portable cases help keep those tools and equipment in order and easy to bring to the work area.
How To BuyContact us
sales@cloudoptics.net
| item | Kevlar Cutter | Cable Jacket Stripper | Utility Knife | Cable Sheath Stripper | Fiber & Network Cable Stripper | Rotary Coaxial Cable Stripper | 4 Bit Screwdriver | Flash Light |
| Fiber Optic Tool Kits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| item | Fiber Optic Stripper | 8" Adjustable Wrench | Buffer Tube Stripper | Blow Brush | Ideal Coaxial Cable Stripper | Fiber Connector Clean Wipes | Round Cable Slitter | 100PCS Shrink Protection Sleeve |
| Fiber Optic Tool Kits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |

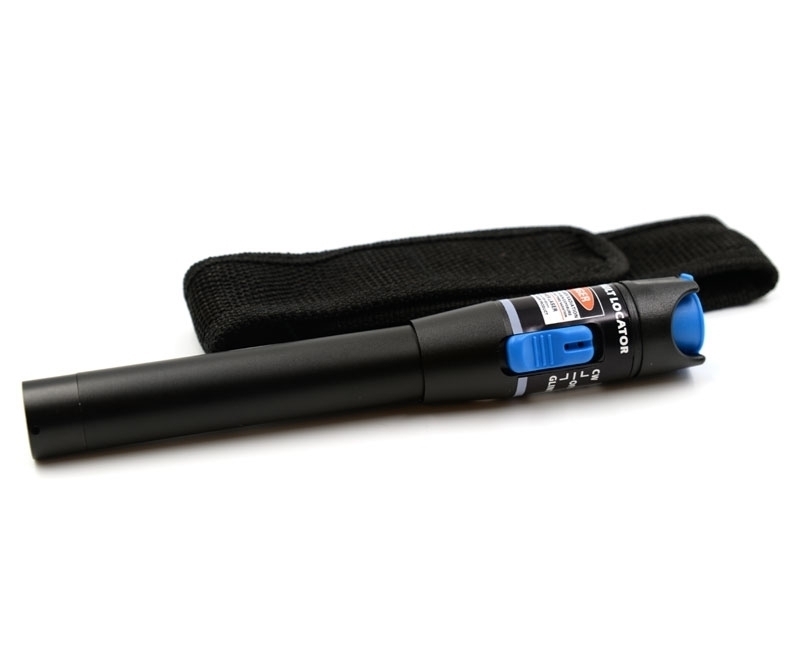

| item | 6" Long Nose Plier | ABS Heavy Duty Tool Case | 6" Side Cutting Plier | 3.5m Measuring Tape | 200ml Leakproof Plastic Bottle | Mini Visual Fault Locator (Optional) | High Precision Tweezer | 100PCS Cleaning Swab (2.5mm) |
| Fiber Optic Tool Kits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| item | Wavelength | Detector | Measurement Range | Uncertainty | Calibrated Wavelength | Resolution | Optical Connector | Power Supply | Relative Humidity | Operating Temperature | Storage Temperature |

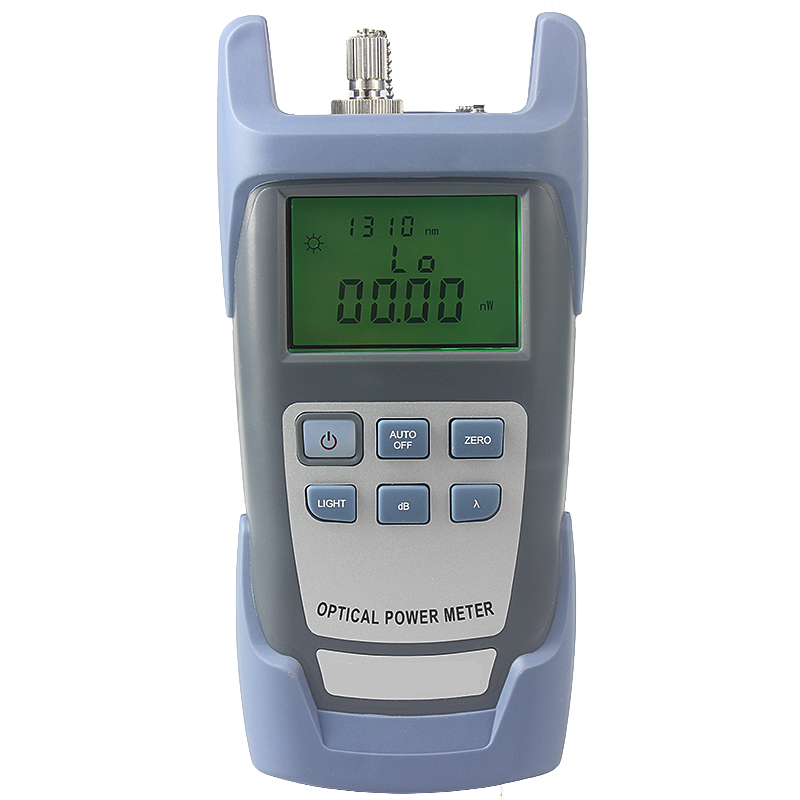

| Handheld 3COPM-01 | 800~1600nm | InGaAs | -70~+6dBm | ±5% | 850/980/1300/1310/1490/1550nm/1625nm | 0.01dB | 2.5mm+FC+SC+ST Connector | Alkaline Battery (3 AA 1.5V batteries) | 0 to 95% (non-condensing) | -10 ~ +60 °C | -25 ~ +70 °C |
| Handheld 3COPM-02 | 800~1600nm | InGaAs | -50~+26dBm | ±5% | 850/980/1300/1310/1490/1550nm/1625nm | 0.01dB | 2.5mm+FC+SC+ST Connector | Alkaline Battery (3 AA 1.5V batteries) | 0 to 95% (non-condensing) | -10 ~ +60 °C | -25 ~ +70 °C |
| item | Wavelength Range | Detector | Calibration Wavelength | Optical Power Meter Range | Insertion Loss Accuracy | Resolution | Linearity | System Control | Interface Type | Working Temperature | Continuons Working Hours |
| MPO Optical Power Meter | 850~1700nm | InGaAs | 850/1300nm or 1310/1550nm | -50~+3 dBm | <0.2s/channel | 0.01dB | ±0.2dB (-50~+5dBm) | USB | SM/MM MPO/PC 12/24 fibers female | -5~+40°C | >10h |
| item | Wavelength Resolution | Measurement Range | Uncertainty | Calibrated Wavelength | Resolution | Optical Connector | Date Storage | Power Supply | Operating Temperature | Storage Temperature | Auto Power-off | Battery Working Hours |
| CWDM Optical Power Meter | 20nm | -40~+5dBm | ±0.5dB | 1270~1610nm | 0.01dB | 2.5mm+FC+SC+ST Connector | 1000 records | Built-in Battery/AC Power Adapter | -10~+50°C | -25~+70°C | 10min | ＞10h |
| item | Measurement Range | Detector Type | Connatural Uncertainty | Linearity | Resolution | Fiber Type | Operation Voltage | Power Supply | Continuously Operation time | Weight | Operation Temperature | Storage temperature |
| PON Optical Power Meter | -40～+10dBm | InGaAs | ±0.5dB | ±0.1dB | 0.01dB | SM 9/125um | DC 3.3V~5.5V | 3pcs of 1.5V battery | 90h | 423g | -10°C~60°C | -25°C~70°C |
| item | Wavelengths (nm) | Emitter Type | Typical Output Power (dBm) | Spectral Width(nm) | Output Stability | Modulation Frequencies | Optical Connector | Power Supply | Operating Temperature | Storage Temperature | Dimension (mm) | Weight (g) |
| Standard Fiber Optic Light Source | 850/1300 、1310/1550 | FP-LD or LED (others please specify) | -7dBm for LD and -20dBm for LED | ≤10 | ±0.05dB/15mins or ±0.1dB/ 8hours | CW / 270Hz / 1KHz / 2KHz | 2.5mm+FC+SC+ST | Alkaline Battery (3 AA 1.5V batteries) | -10~+60°C | -25~+70°C | 152x74x26 | 180 |
| item | Wavelengths (nm) | Applicable Fiber | Laser Type | Output Power (dBm) | Adjustable Step Size (dBm) | Stability (dB/30min/20°C) | Modulation Frequencies | Optical Connector | Alkaline Battery | Power Supply Adaptor | Operating Temperature | Storage Temperature | Dimension (mm) | Weight (g) |
| Multifunctional Fiber Optic Light Source | 850/1300 、1310/1550 | SMF、MMF | FP-LD (others specify on requests) | -5±0.3*、-5 (can be adjustable) | <0.5 (ajustable between -5~-12 dBm) | 0.15 | CW / 270Hz / 1KHz / 2KHz | 2.5mm+FC+SC+ST | 3xAA 1.5V Batteries | 8.4 | -10~+60°C | -25~+70°C | 175x90x44.5 | 255g |
| item | Fiber Type | Length | Connector 1 | Connector 2 | Material | Typical Loss | Operating temperature | Dimension |
| OTDR Fiber Launch Boxes | 9/125 Singlemode | 150m、500m、1km、2km、10km | SC/UPC | SC/UPC | SR Polypropylene | < 0.5dB@1310nM for 1000 meters | -40~ +55°C | 238x141x66mm |
