DESCRIPTION

EMBEDDED

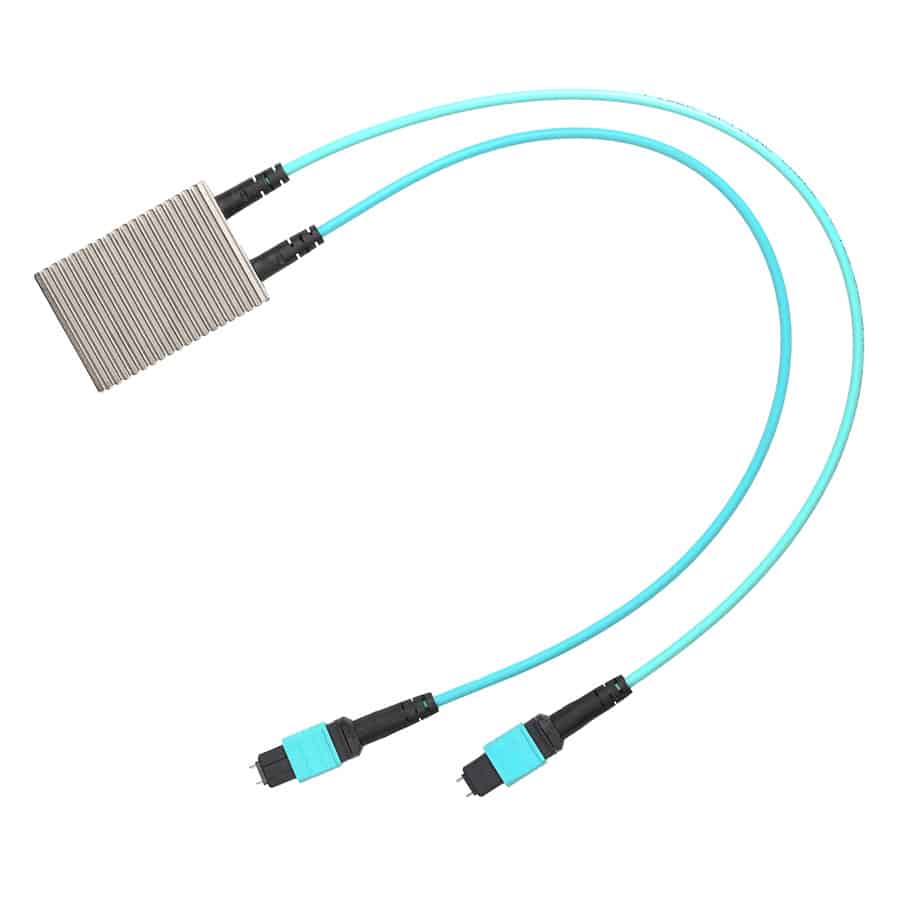

The 600G HDEM “SR24” is a 24x25Gb/s, high density embedded pluggable optical transceiver module (HDEM) for short-range data communication and interconnect applications. The module has 24 channels in each direction with 600Gb/s aggregate bandwidth. Each channel operates up to 25.78Gb/s, and up to 50m using OM3 fiber. The electrical interface uses a 260-contact commercial plug connector. The optical interface uses two 24 core MPO connectors.

• 25.78Gb/s x 24 channel full duplex transmission
• Terminated with a dual 24-core MTP male pigtail cable, 12Tx + 12Rx at each end
• Compact module size (50x35x16 mm) and PCB footprint (28×19 mm)
• Customized length with 3mm cable diameter cable, minimum bending radius <30mm
• Low power consumption (<12W @ 3.3V supply voltage)
• Support up to 50m transmission at 25.78Gb/s with OM3 fiber
• Operation case temperature range: 0°C – 60°C
• I2C management interface
• Enabled by 850nm VCSEL
• Hot pluggable
• Integrated heat sink with module for air coole
