DESCRIPTION

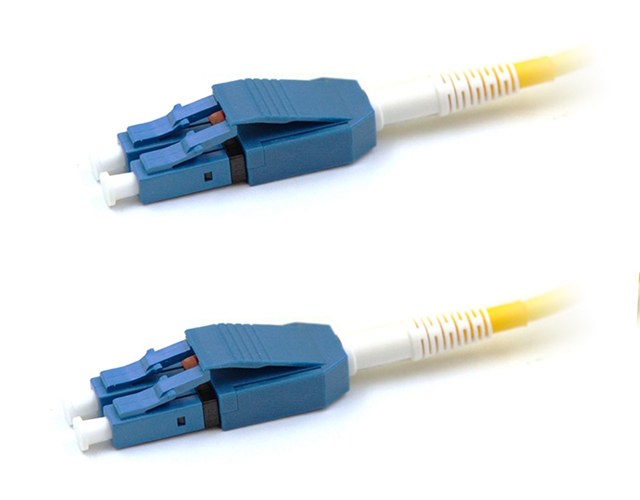

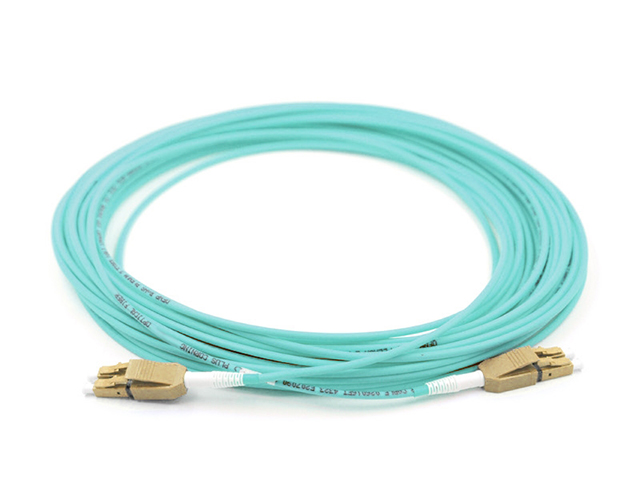

Uniboot Fiber Patch Cables

Item	Insertion Loss	Return Loss	Pull-out Force	Durability	Operating Temp.	Storage Temperature	Minimum Bend Radiu
OM3 Uniboot LC Cables1M	≤0.2dB	≥20dB	100N	500 Cycles	-40 to + 85°C	-45 to + 85°C	7.5mm
OM3 Uniboot LC Cables2M	≤0.2dB	≥20dB	100N	500 Cycles	-40 to + 85°C	-45 to + 85°C	7.5mm
OM3 Uniboot LC Cables3M	≤0.2dB	≥20dB	100N	500 Cycles	-40 to + 85°C	-45 to + 85°C	7.5mm
OM3 Uniboot LC Cables5M	≤0.2dB	≥20dB	100N	500 Cycles	-40 to + 85°C	-45 to + 85°C	7.5mm

Item	Minimum Bend Radiu	Insertion Loss	Return Loss	Pull-out Force	Durability	Operating Temp.	Storage Temperature
OM4 Bend Insensitive LC Cables1M	7.5mm	≤0.2dB	≥20dB	100N	500 Cycles	-40~85°C	-45~85°C
OM4Bend Insensitive Uniboot LC Cables2M	7.5mm	≤0.2dB	≥20dB	100N	500 Cycles	-40~85°C	-45~85°C
OM4 Bend InsensitiveUniboot LC Cables3M	7.5mm	≤0.2dB	≥20dB	100N	500 Cycles	-40~85°C	-45~85°C
OM4 Bend InsensitiveUniboot LC Cables5M	7.5mm	≤0.2dB	≥20dB	100N	500 Cycles	-40~85°C	-45~85°C
