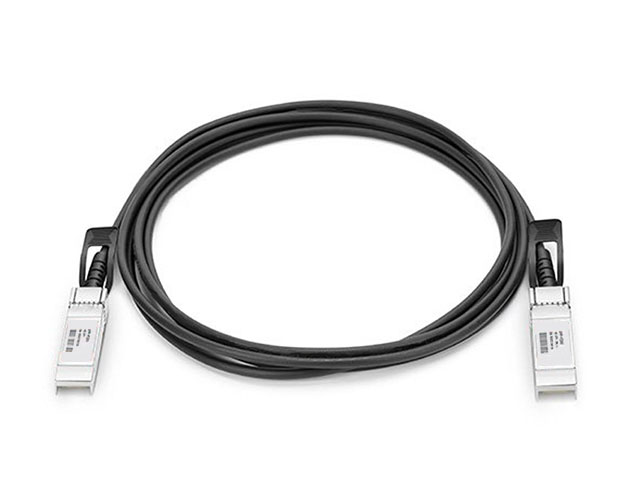

DAC cables, or “Direct Attach Cables”, are a form of shielded high speed cable with SFP connectors on either end. They can be used to connect switches to routers and/or servers. They are becoming increasingly popular in the network industry, mainly because the price difference is so large when compared with regular optics. Another reason for their increased popularity is that RJ-45 10G is not widely adopted, and most high density 10G switches are delivered with 48x SFP+ ports in 1 Rack Unit. There are different versions of cables on the market. Because high speed cables are sensitive to electromagnetic fields, the shielding is an important quality factor for the cables. This is written on the cables in the form of AWG ratings like 28AWG and 30AWG: The longer the distance, the higher the AWG rating should be. The most basic version of this cable is the ‘Passive Assembly’ where the data cables are directly connected to the Transmitting and Receiving signal. Because this signal is not very strong you can reach up to 5 meters with this setup depending on the switch or router. The active cable version contains more sophisticated electronics where the transmitting power is amplified to give a better data-pulse. You can see this in the product naming like ACU and not CU (e.g. SFP-H10GB-ACU5M vs SFP-H10GB-CU5M). Solid Optics specializes in recoding and rebranding these DAC patch cables Our SFP10G-SR pricing with a glass fiber patch cable is around the same pricing as an Original Brand cable. Using these optics offers greater flexibility in the distance you want to deploy and avoid any compatibility and communication issues.
How To BuyContact us
sales@cloudoptics.net
| Item | Max Data Rate | Minimum Bend Radius | Jacket Material | Temperature | Protocols |
| 10G SFP+ DAC Cable | |||||
| CO-10GSFP+-DAC1M | 10Gbps | 20mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel |
| CO-10GSFP+-DAC2M | 10Gbps | 20mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel |
| CO-10GSFP+-DAC3M | 10Gbps | 20mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel |
| CO-10GSFP+-DAC5M | 10Gbps | 20mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel |
| CO-10GSFP+-DAC7M | 10Gbps | 20mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel |
| CO-10GSFP+-DAC10M | 10Gbps | 20mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel |
| 25G SFP28 DAC Cable | |||||
| CO-25GSFP28-DAC1M | 25Gbps | 25mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-25GSFP28-DAC2M | 25Gbps | 25mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-25GSFP28-DAC3M | 25Gbps | 25mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-25GSFP28-DAC5M | 25Gbps | 25mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| 40G QSFP+ DAC Cable | |||||
| CO-40GQSFP+-DAC1M | 40Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-40GQSFP+-DAC2M | 40Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 159°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-40GQSFP+-DAC3M | 40Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 160°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-40GQSFP+-DAC5M | 40Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 161°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| CO-40GQSFP+-DAC7M | 40Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 162°F) | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
| 100G QSFP28 DAC Cable | |||||
| CO-100GQSFP28-DAC1M | 100Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | |
| CO-100GQSFP28-DAC2M | 100Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | |
| CO-100GQSFP28-DAC3M | 100Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | |
| CO-100GQSFP28-DAC5M | 100Gbps | 35mm | PVC(OFNR) | 0 to 70°C (32 to 158°F) | |
