With high-density connectors, multiple cable configurations and integrated specialty components, CloudOptics support the integration of high-performance networks while reducing the number of cables required and, thus, reducing overall system cost and maintenance.
How To BuyContact us
sales@cloudoptics.net
| Item | Wavelength | Insertion Loss | Return Loss | Minimum Bend Radius | Attenuation at 1310 nm | Attenuation at 1550 nm | Polarity | Operating Temperature | Storage Temperature |

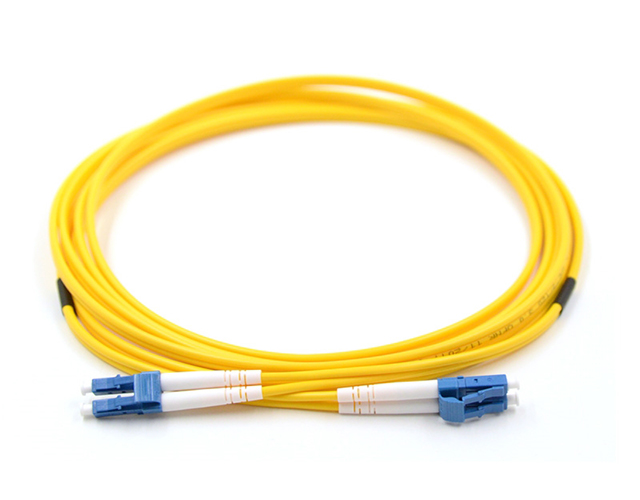

| OS2 Single Mode Duplex Cables1M | 1310/1550nm | ≤0.3dB | ≥50dB | 10mm | 0.36 dB/km | 0.22 dB/km | A(Tx) to B(Rx) | -20~80°C | -40~80°C |
| OS2 Single Mode Duplex Cables2M | 1310/1550nm | ≤0.3dB | ≥50dB | 10mm | 0.36 dB/km | 0.22 dB/km | A(Tx) to B(Rx) | -20~80°C | -40~80°C |
| OS2 Single Mode Duplex Cables3M | 1310/1550nm | ≤0.3dB | ≥50dB | 10mm | 0.36 dB/km | 0.22 dB/km | A(Tx) to B(Rx) | -20~80°C | -40~80°C |
| OS2 Single Mode Duplex Cables5M | 1310/1550nm | ≤0.3dB | ≥50dB | 10mm | 0.36 dB/km | 0.22 dB/km | A(Tx) to B(Rx) | -20~80°C | -40~80°C |
| OS2 Single Mode Duplex Cables7M | 1310/1550nm | ≤0.3dB | ≥50dB | 10mm | 0.36 dB/km | 0.22 dB/km | A(Tx) to B(Rx) | -20~80°C | -40~80°C |
| OS2 Single Mode Duplex Cables10M | 1310/1550nm | ≤0.3dB | ≥50dB | 10mm | 0.36 dB/km | 0.22 dB/km | A(Tx) to B(Rx) | -20~80°C | -40~80°C |
| Item | Wavelength | Insertion Loss | Return Loss | Minimum Bend Radius | Attenuation at 850nm | Attenuation at 1300nm | Storage Temperature | 40G Ethernet Distance | 100G Ethernet Distance |

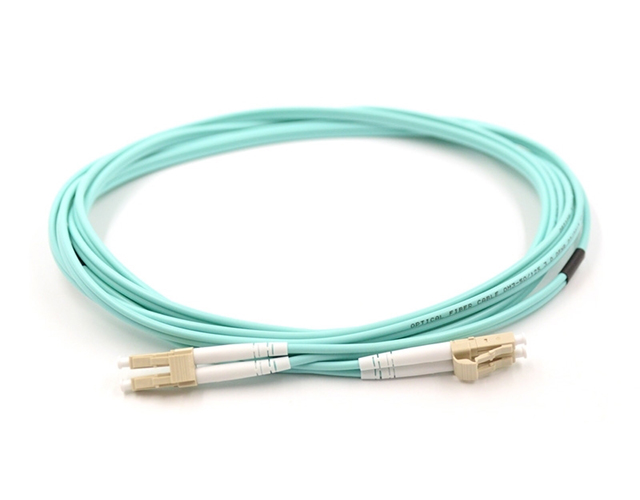

| OM4 Bend Insensitive50/125 Multimode Cables1M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| OM4 Bend Insensitive50/125 Multimode Cables2M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| OM4 Bend Insensitive50/125 Multimode Cables3M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| OM4Bend Insensitive 50/125 Multimode Cables5M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| OM4 Bend Insensitive50/125 Multimode Cables7M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| OM4 Bend Insensitive50/125 Multimode Cables10M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| OM4 Bend Insensitive50/125 Multimode Cables15M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | -40~80°C | 150m at 850nm | 100m at 850nm |
| Item | Wavelength | Insertion Loss | Return Loss | Minimum Bend Radius | Attenuation at 850nm | Attenuation at 1300nm | Polarity | Operating Temperature | 10G Ethernet Distance |
| OM3Bend Insensitive 50/125 Multimode Cables1M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| OM3 Bend Insensitive50/125 Multimode Cables2M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| OM3 Bend Insensitive50/125 Multimode Cables3M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| OM3 Bend Insensitive50/125 Multimode Cables5M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| OM3 Bend Insensitive50/125 Multimode Cables7M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| OM3 Bend Insensitive50/125 Multimode Cables10M | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| OM3 Bend Insensitive50/125 Multimode Cables15 | 850/1300nm | ≤0.3dB | ≥20dB | 7.5mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 300m at 850nm |
| Item | Wavelength | Insertion Loss | Return Loss | Minimum Bend Radius | Attenuation at 850nm | Attenuation at 1300nm | Polarity | Operating Temperature | 1G Ethernet Distance |

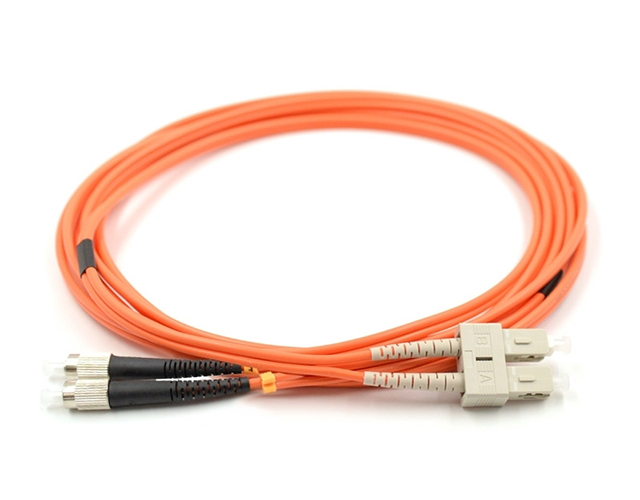

| OM2 50/125 Multimode Cables1M | 850/1300nm | ≤0.3dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 550m at 850nm |
| OM2 50/125 Multimode Cables2M | 850/1300nm | ≤0.3dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 550m at 850nm |
| OM2 50/125 Multimode Cables3M | 850/1300nm | ≤0.3dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 550m at 850nm |
| OM2 50/125 Multimode Cables5M | 850/1300nm | ≤0.3dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 550m at 850nm |
| Item | Wavelength | Insertion Loss | Return Loss | Minimum Bend Radius | Attenuation at 850nm | Attenuation at 1300nm | Polarity | Operating Temperature | 1G Ethernet Distance |
| OM1 62.5/125 Multimode Cables1M | 850/1300nm | ≤0.3dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 280m at 850nm |
| OM1 62.5/125 Multimode Cables2M | 850/1301nm | ≤0.4dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 280m at 850nm |
| OM1 62.5/125 Multimode Cables3M | 850/1302nm | ≤0.5dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 280m at 850nm |
| OM1 62.5/125 Multimode Cables5M | 850/1303nm | ≤0.6dB | ≥20dB | 15mm | 3.0 dB/km | 1.0 dB/km | A(Tx) to B(Rx) | -20~80°C | 280m at 850nm |
