DESCRIPTION

Cell Site Gateway

The AS7316-26XB and AS7315-27X-DCSG are temperature hardened and optimized for deployment in outside plant enclosures and support base stations with full IEEE 1588 timing and GPS functions, provide backhaul uplinks at 25G or 100G Ethernet, and airflow and stacking port options. The gateways incorporate Broadcom® StrataDNX™ switch silicon, deep packet buffer memory, and offer Intel® Xeon® and Atom® Processor options. Both models support both commercial and open source network operating system options.

Part Number Description:
Base Model: AS7316-26XB; 16 x 10G SFP+, 8 x 25G SFP28 and 2 x 100G QSFP28 fixed ports; ONIE software installer,  3-year Hardware Warranty

Product Overview

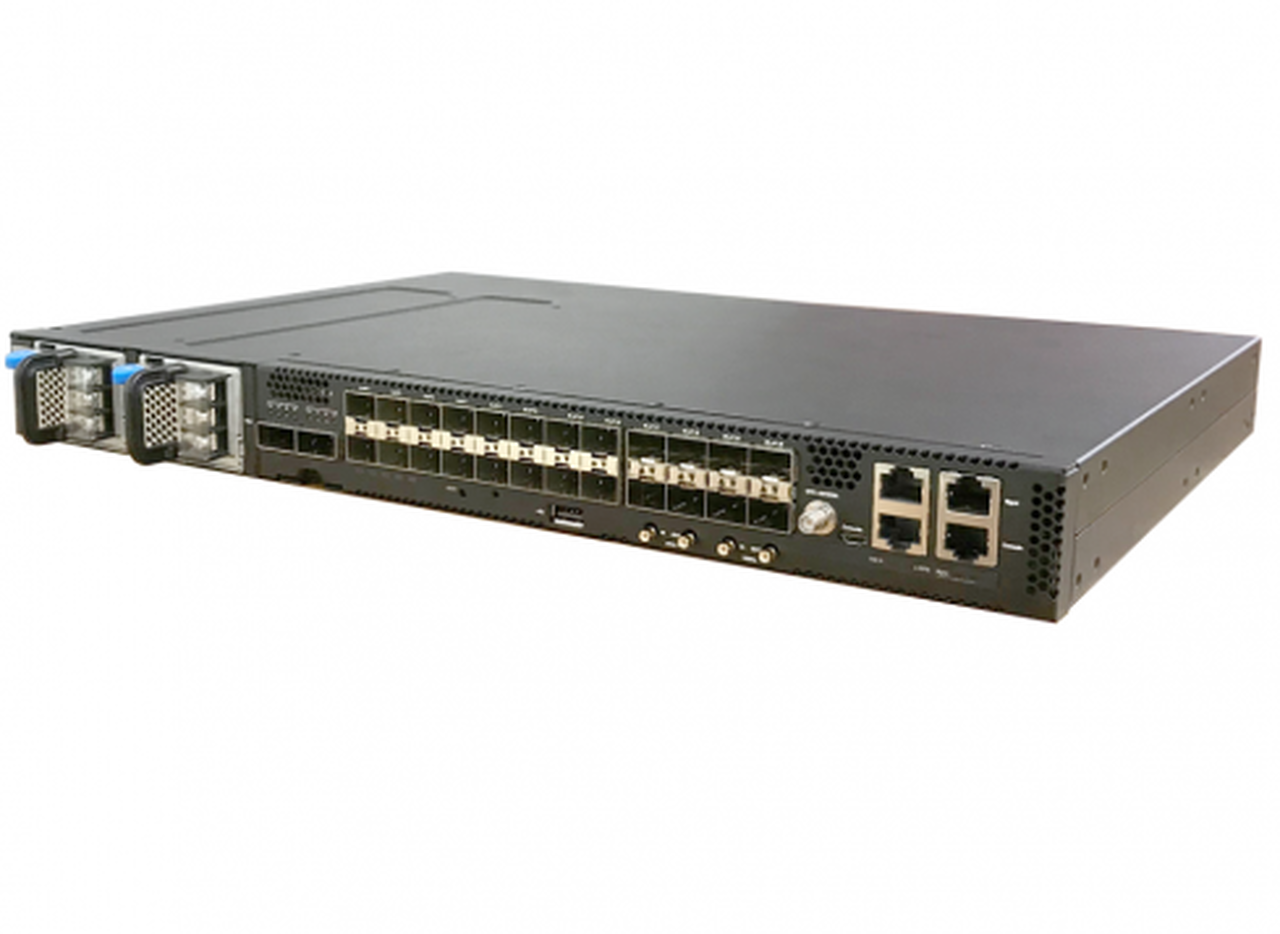

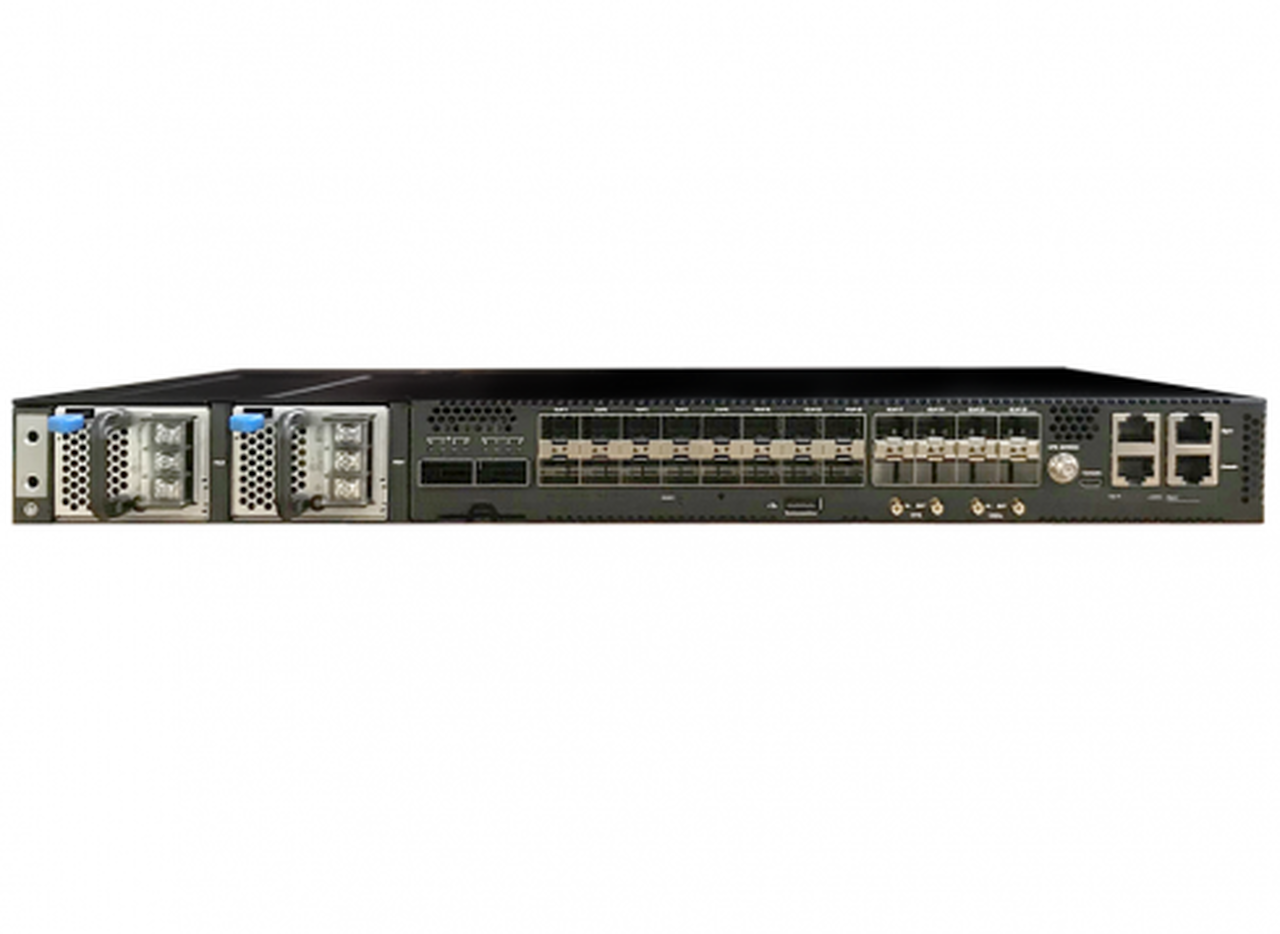

The AS7316-26XB is a cell site gateway designed for outdoor deployment in cabinets located at a mobile cellular tower sites and supports a hardened operational temperature from -40℃ to 65℃. The AS7316-26XB features 16 x 10G SFP+, 8 x 25G SFP28 and 2 x 100G QSFP28 fixed ports, with all switch ports and console/management/ToD/BITS/1PPS/10MHz ports being located on the front panel.

Key Features and Benefits

• Open Network cell site gateway for mobile backhaul networks
• 16 x 10G SFP+ , 8 x 25G SFP28 and 2 x 100G QSFP28 fixed ports
• Full line-rate Layer 2 or Layer 3 forwarding of 300 Gbps
• Rack mountable in standard 19\" racks
• Supports port-to-power airflow SKU
• All ports and PSUs on front; fan modules on rear
• Hot-swappable, load sharing, redundant AC/48VDC PSUs
• Hot swappable 5+1 redundant fan modules
• Management: Ethernet and console RJ-45 ports; USB storage port
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
• Compatible with Open Network Linux (ONL)
• Compatible with IP Infusion (OcNOS) and Metaswitch
• Compatible with Infinera
