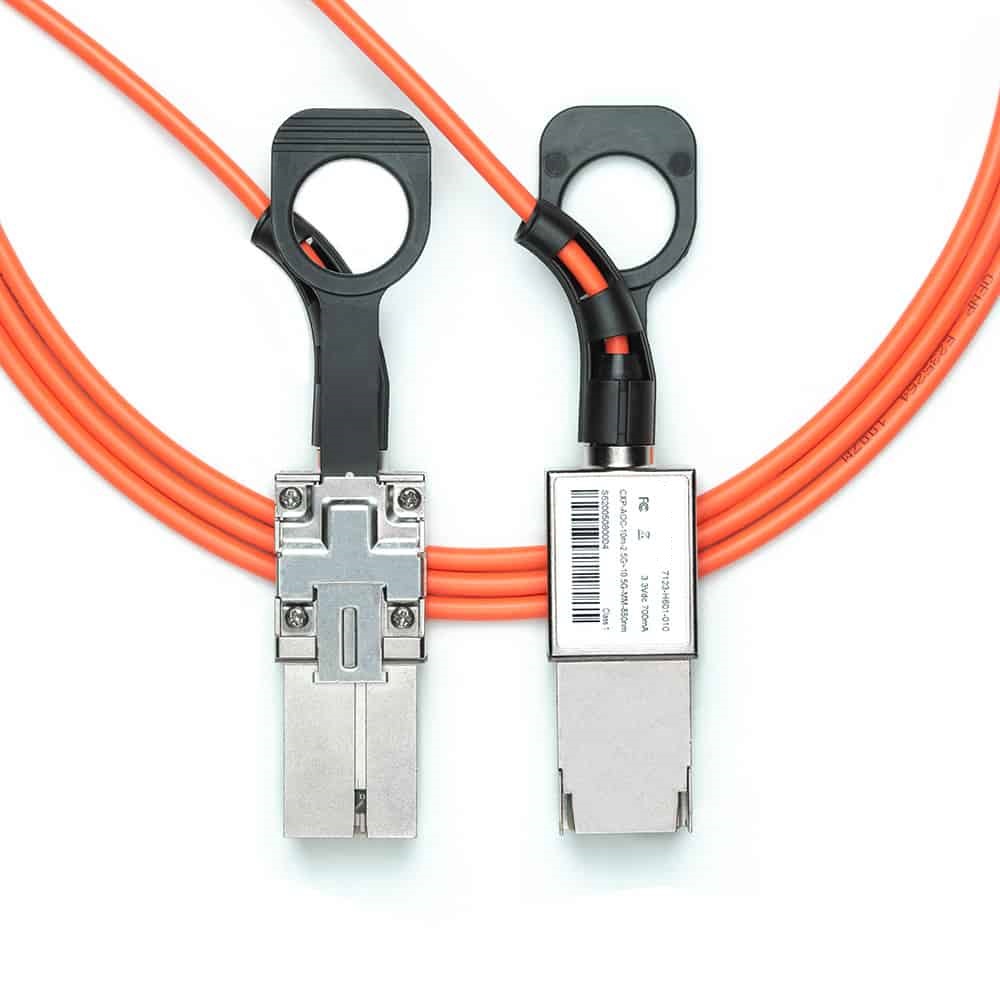

The CXP Active Optical Cable (CXP AOC) is designed to support twelve bi-directional channels, parallel, high-speed for Infiniband quadruple data rate applications. The AOC supports 10Gb/s per channel for distances from 2 to 100 meters using laser optimized advance high-performance multimode fiber (OM2+). The CXP form factor complies with the Infiniband Architecture Specifications.
Data Rate
Form Factor
Optical Interface
Connector
Technology
Reach
Electrical Interface
Retimer
Application
Digital Control
Power
Operating Temperature
120G
CXP
AOC
AOC
VCSEL
100m
12x10G
-
Infiniband
IB v1.3
2.5W
0°C – 70°C
168G
CXP
AOC
AOC
VCSEL
100m
12x14G
-
Infiniband
IB v1.3
3.8W
0°C – 70°C
300G
CXP2
AOC
AOC
VCSEL
100m
12x25G
Analog
Infiniband
IB v1.3
5.6W
0°C – 70°C
