DESCRIPTION

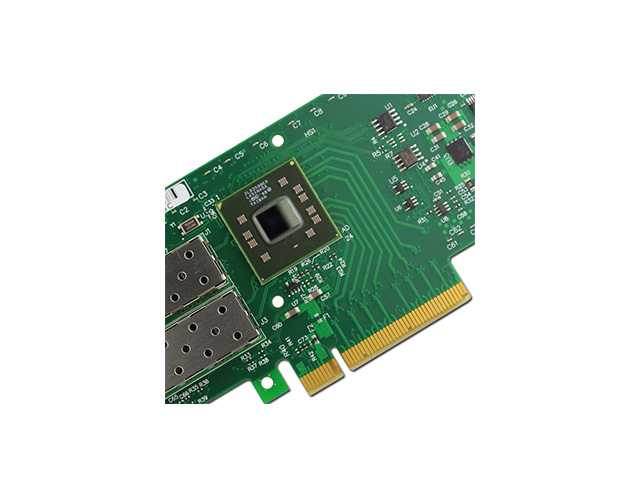

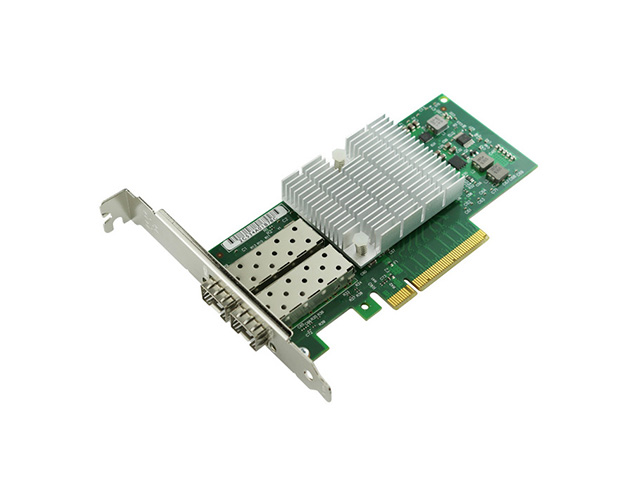

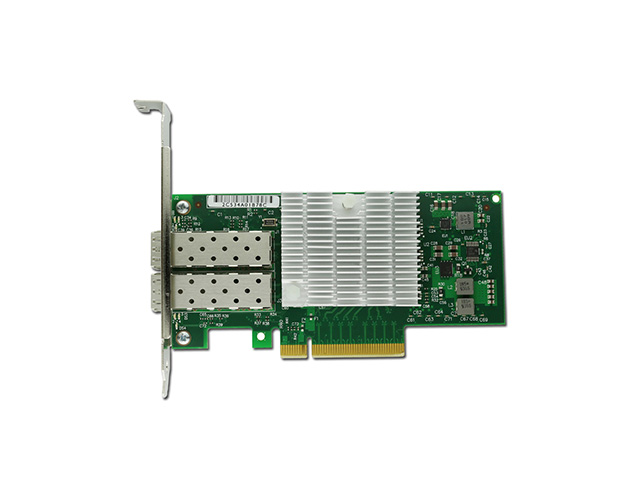

10 Gigabit SFP+ Ethernet Network Adapter

Item	Card Type	Controller	Interface Type	Port Configuration	Data Rate Per Port	Speed&Slot Width	Connec.(VT-c)	Vertical Segment
PCIe2.0 10 Gigabit SFP+ Ethernet Network Interface Card	Standard Profile (LP bracket incl.)	Intel 82599ES	PCIe v2.0	Dual/Single	10GbE	5.0 GT/s x8 lanes	Yes	Server
PCIe3.0 10 Gigabit SFP+ Ethernet Network Interface Card	Standard Profile (LP bracket incl.)	Intel X710-BM2	PCIe v3.0	Dual/Quad	10GbE	8.0 GT/s x8 lanes	Yes	Server
PCIe2.1 Copper Port 10GBase-T Ethernet Network Interface Card	Standard Profile (LP bracket incl.)	Intel X540-BT2	PCIe v2.1	Dual	10GbE/1GbE/100Mb	5.0 GT/s x8 lanes	Yes	Server

Download the data sheet

• datasheet

• Technical Features
  Intel; PROSet Utility; Plug and play specification support; Receive-side scaling; Direct Cache Access (DCA)
• Network Operating Systems Support
  VMvare ESX/ESXi 5.5/6.x or newer; Windows 7/8/8.1/10; Windows Server 2016 R2/2012 R2/2012; 2008 R2/2016; Linux Stable Kernel version 2.6.32/3.x/4.x or newer; Red Hat Enterprise Linux 6.8/7.3; FreeBSD 10.3/11; Linux SLES 12 SP2; WinPE 3.0 (2008 R2 PE)/4.0 (2012 R2 PE)/6.0 (2016 PE)
• Supported Optical Transceivers and Cables
  SFP1G-SX-85; SFP1G-LX-31; SFP1G-ZX-55; SFP-10G-SR; SFP-10G-LR; SFP-GE-BX-1310/1550; SFP-GE-BX-1550/1310; SFP-10G-BX-1270/1330; SFP-10G-BX-1330/1270; SFP-10G-DAC; SFP28-25G-SR
