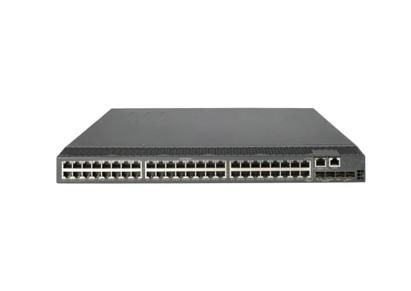

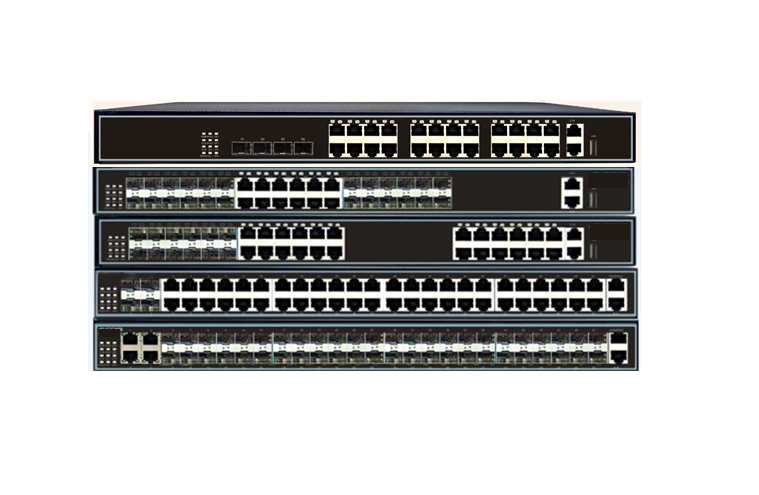

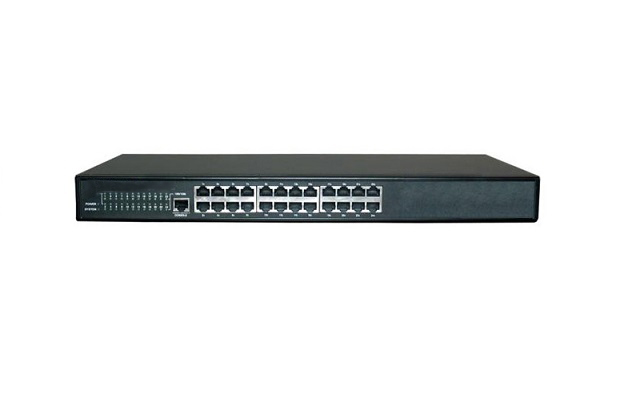

Cloudoptics S5000 series are advanced Layer 2+ Gigabit managed stackable switches with 10G uplink perfect for Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to Gigabit bandwidth. They are also the ideal Gigabit access and aggregation switch for SMB, enterprise, and campus networks.
How To BuyContact us
sales@cloudoptics.net
| Item | S5028-24T4S+ | S5028-24S4S+ | S5052-48T4S+ |
| 1GbE Port | 24 | 24 | 48 |
| 10GbE SFP+ Ports | 4 | 4 | 4 |
| Switching Capacity | 128Gbps | 128Gbps | 176Gbps |
| Switch Chip | BCM56150 | BCM56151 | BCM56150 |
| Physical Stacking | Up to 6 Devices | Up to 6 Devices | Up to 6 Devices |
| Flash Memory | 64MB | 64MB | 64MB |
| Packet Buffer Memory | 16M | 16M | 16M |
| DDRIII Capacity | 512MB | 512MB | 512MB |
| MAC Address Table | 16K | 16K | 16K |
| Jumbo Frames | 9KB | 9KB | 9KB |
| Airflow | Fanless | Front to Back | Left to Right |
| Max. Sound Level | 0 dB | 52 dB | 54 dB |
| Power Supply | Dual Power | Dual Power | Dual Power |
| Input Power | 100-240VAC 50-60Hz | 100-240VAC 50-60Hz | 100-240VAC 50-60Hz |
| Max System Power Consumption | 21W | 43W | 45W |
| Operating Temperature | 0℃ to 50℃ | 0℃ to 50℃ | 0℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ | -40℃ to 70℃ | -40℃ to 70℃ |
| Relative Humidity | 10% to 90%, non-condensing | 10% to 90%, non-condensing | 10% to 90%, non-condensing |
Limitless Network Connectivity
